Operating Systems Guide for Roman Shades

Table of Contents

PDF Version of Operating Systems Guide for Roman Shades

Designers

  • Please refer all Motorization questions to the Products Division at 215.723.8177 Ext. 216 or email [email protected].
  • To cover the Operating System so it’s not seen from the outside of the window, please add “Back Shield for Shades” as a line item on the order form. We add a 6” long piece of blackout lining across the top of the back of the shade to cover the system.

Workrooms

  • For detailed fabrication instructions and other specific questions on Shade Kit Components, contact our Hardware Department ext. 216 or email [email protected].

MYL 100% Cordless Shade System

Custom Shade Labor

Use code OSA13 on the Shade Labor Order Form.

  • Safe-T-Shade Ribs and J-Hooks with the Rollease Acmeda EasySpring Plus make this system 100% Cordless.
  • Minimum 2 1/2” Return, Minimum Width 27” (see the chart near the bottom of the page for “Safe Zone Shade Sizes”).
  • Shield attaches with Rib and J-Hooks at every horizontal row and at bottom of the shade.
  • Blackout Shield Standard (Light Filtering Shield also available).
  • Specify Inside or Outside Mount when ordering.
  • Brackets and Mounting instructions are included.
  • Certified best for kids.

Workroom Kit

Use code LTKIT on the Kit Order Form.

To order kit: Specify Shade Width, Length, Return, # Rows of Rings & Inside or Outside Mount

Kit includes:

  • 1 – Roller with Spring
  • 1 – Wood Mounting Board
  • 2 – J-Hooks per rib
  • 2 – Universal Bracket—Clutch Assist
  • 1 – Lift Rib for every 10” (standard)
  • 1 – Plastic Bottom Rail Insert
  • 1 – Bottom Rail 2 – Bottom Rail Ends
  • 2 – 1/2” Mounting Angle Irons with Screws
  • 1 – Roller Fabric Lift System

Blackout is the standard because it hides the shadows created by the ribs. Light Filtering is also available.

MYL Shield Spring Shade System with Rollease Acmeda Easy Spring Plus

Custom Shade Labor

Use code OSA12 on the Shade Labor Order Form.

  • Standard Shade construction with Rings and Cord, with Ladder Shroud on the side edge rows only.
  • Shield attaches at bottom of shade with Rib and J-hooks.
  • Minimum 2 1/2” Return / Min Width 27” (See the Chart on page 13 “Safe Zone Shade Sizes”).
  • Light Filtering Standard (Blackout Shield also available).
  • Specify Inside or Outside Mount when ordering.
  • Brackets and Mounting instructions are included.

Workroom Kit

Use code LSKIT on the Kit Order Form.

To order kit: Specify Shade Width, Length, Return, # Rows of Rings & Inside or Outside Mount

Kit includes:

  • 1 – Roller Head Rail & Roller (Mounted)
  • 2 – Brackets
  • 1 – Head Rail is 3/4” pine covered in lining
  • 2 – J-Hooks
  • 1 – Rib for bottom hem
  • 1 – Bottom Rail
  • 2 – 1/2” Mounting Angle Irons with Screws
  • 1 – Roller Fabric Lift System

Light Filtering standard. Blackout is available. If using Safe-T-Shade Ring Locks, always use 1.4 mm Cord.

Rollease Acmeda Easy Spring Plus with Ring Locks Shade System

Custom Shade Labor

Use code OSA10 on the Shade Labor Order Form.

  • Standard Shade construction with Rings and Cord, with Ring Locks standard (Ladder Shroud available upon request).
  • Minimum 2 1/2” Return, Minimum Width 27” (See the Chart on page 13 “Safe Zone Shade Sizes”).
  • The ring is added to keep the shade clean when raising and lowering. If there is a center row, the ring is placed in the center. If you don’t have a center row, the ring will be placed on one of the rows closest to the center.
  • Brackets and Mounting instructions are included.

Workroom Kit

Use code REKIT on the Kit Order Form.

To order kit: Specify Shade Width, Length, Return, # Rows of Rings & Inside or Outside Mount

Kit includes:

  • 4 – Headrail screws
  • 1 – Roller
  • 2 – Bracket with Adjustable Wheel
  • 1 – Headrail
  • 1 – Left side EasySpring
  • 1 – Right Side Stop
  • 2 – Headrail Mounting Bracket
  • Roller Roman Clip—one for each row of Rings

If using Safe-T-Shade Ring Locks, always use 1.4 mm Cord.

MYL Shield Clutch Shade System

Custom Shade Labor

Use code OSA17 on the Shade Labor Order Form.

  • Standard Shade construction with Rings and Cord, with Ladder Shroud on the side edge rows only.
  • Shield attaches at bottom of shade with Rib and J-hooks.
  • Minimum 2 1/2” Return / Min Width 27”.
  • Light Filtering Shield Standard (Blackout Shield also available).
  • Specify Inside or Outside Mount when ordering.
  • Brackets and Mounting Instructions are included.

Workroom Kit

Use code RSKIT on the Kit Order Form.

To order kit: Specify Shade Width, Length, Return, # Rows of Rings & Inside or Outside Mount & Control Side

Kit includes:

  • 1 – Head Rail is 3/4” pine covered in lining
  • 2 – J-Hooks
  • 1 – Roller Head Rail & Roller (Mounted)
  • 2 – Brackets
  • 2 – 1/2” Mounting Angle Irons with Screws
  • 1 – Bottom Rail
  • 1 – Rib for bottom hem
  • 1 – Roller Fabric Lift System—Light Filtering standard / Blackout available

If using Safe-T-Shade Ring Locks, always use 1.4 mm Cord.

Rollease Acmeda SS38 Roman Shade System

Custom Shade Labor

Use code OSA on the Shade Labor Order Form.

  • Minimum 1 1/2” Return / Lengths up to 13’
  • Slim aluminum Headrail comes with Mounting Brackets. It is not board mounted.
  • Continuous Bead Cord Loop standard with Safety Tags and the Tension Hold Down Device.
  • We suggest using with Ribbed Romans only because the first row of rings on both sides is set in 3”.
  • Two ways to mount— with Velcro on the front or with a Spline that inserts into the top of the Headrail. MYL standard is Spline mounted.
  • Specify Inside or Outside Mount & Control Side when ordering.
  • Brackets and Mounting instructions are included.

Workroom Kit

Use code LSS38 on the Kit Order Form.

To order kit: Specify Shade Width, Length, Return, # Rows of Rings & Inside or Outside Mount & Control Side

Kit includes:

  • 1 – Chainhold
  • 1 – Direct or Planetary Drive
  • 1 – Chain Rotation Chain
  • 1 – Headrail End Cap
  • 1 – Headrail with Tiltrod
  • 1 – Spline for inserting Shade to Headrail with Double Sided Tape or Velcro
  • Sew On Standard spools with Lift Cords
  • Low Profile Mounting Clips as needed

Rollease Acmeda Workroom 3/8” Shaft Shade System

Custom Shade Labor

Use Code: OSA2 Slim for 1 1/2” return OR Code: OSA1 Large for 2 1/2” return on the Shade Order Form.

  • Continuous Bead Cord Loop standard with Safety Tags and Tension Hold Down Device.
  • Safe-T-Shade Forever Rings and Ring Locks standard – Ladder Shroud available upon request.
  • Specify Inside or Outside Mount and Control Side when ordering.
  • Brackets and Mounting Instructions are included.

Workroom Kit

Use code L38S Slim System for minimum 1 1/2” return on Kit Order Form.
Use code L38L Large System for minimum 2 1/2” return on Kit Order Form.

To order kit: Specify Shade Width, Length, Return, # Rows of Rings, Inside or Outside Mount & Control Side

Kit includes:

  • 1 – Shaft 6 – Screw Eyes
  • 1 – Shaft End Cap
  • 1 – Rollease Hold Down Device Kit
  • 1 – Clutch & Clutch Cover
  • 1 – Disk Drive & Retainer
  • 2 – Screws for Disc Connector
  • 2 – Spear Drives
  • Brackets: 1 for each row of rings Workroom Clips: one for ea. row
  • 1 – 4’ Plastic Chain Loop with Safety Tag

If using Safe-T-Shade Ring Locks, always use 1.4 mm Cord.

Rollease Acmeda R-Series Shade System

Custom Shade Labor

The size that is most commonly used with a min. 2 1/2” return use the R-Series—1 1/2” size Tube Code: OSA4.

  • Continuous Bead Cord Loop standard with Safety Tags.
  • Safe-T-Shade Forever Rings and Ring Locks Standard.
  • Specify Inside or Outside Mount and Control Side when ordering.
  • Brackets and Mounting Instructions are included.

Workroom Kit

Code L12R – 1 1/2” Tube

To order kit: Specify Shade Width, Length, Return, Rows of Rings, Inside or Outside Mount & Control Side

Kit includes:

  • 1 – Tube
  • 1 – Clutch
  • 2 – Metal Stop Balls
  • 1 – 4’ Metal Chain Loop with Safety Tag
  • 1 – End Plug (Pin End)
  • 1 – Rollease Hold Down Device Kit
  • Roller Roman Clips & Screw Eyes (one for each row of rings)
  • “L” Brackets and Screws for Hanging

If using Safe-T-Shade Ring Locks, always use 1.4 mm Cord.

Rollease Acmeda Automate Li-ion 1.1 Motor with Ring Locks Shade System

Custom Shade Labor

Use Code OSAM1 on the Shade Labor Order Form.

  • Standard Shade construction with Rings and Cord, with Ring Locks standard. Ladder Shroud available upon request.
  • Minimum 2 1/2” Return / Minimum Width 23”.
  • DC Tubular Motor with built-in Lithium-ion rechargeable battery.
  • Recommended Shade max sizes: Maximum Size is 25 Square Feet.
  • 2-way RF communication, 3 speeds available, leveling control.
  • Specify Inside or Outside Mount when ordering.
  • Brackets and Mounting Instructions are included.

Workroom Kit

Use code AUTO1 on the Kit Order Form.

To order kit: Specify Shade Width, Length, Return, # Rows of Rings & Inside or Outside Mount

Kit includes:

  • 1 – Head Rail is 3/4” pine covered in lining 1-DCRF Battery Motor
  • 1 – Roller (Mounted)
  • 1 – Motor Adapter
  • 2 – Brackets
  • 1 – Crown & Drive Set 1.5”
  • 2 – 1/2” Mounting Angle Irons with Screws tube

Optional Accessories:

  • Recharger for DC Battery
  • White 15-Channel Remote

If using Safe-T-Shade Ring Locks, always use 1.4 mm Cord.

Rollease Acmeda Automate Li-ion 2.0 Motor with Ring Locks Shade System

Custom Shade Labor

Use code OSAM2 on the Shade Labor Order Form.

  • Standard Shade construction with Rings and Cord, with Ring Locks standard. Ladder Shroud available upon request.
  • Minimum 2 1/2” Return / Minimum Width 29”.
  • DC Tubular Motor with built-in Lithium-ion rechargeable battery.
  • Recommended maximum shade sizes: Maximum Size is 75 Square Feet.
  • 2-way RF communication, 3 speeds available, leveling control.
  • Specify Inside or Outside Mount when ordering.
  • Brackets and Mounting Instructions are included.

Workroom Kit

Use code AUTO2 on the Kit Order Form.

To order kit: Specify Shade Width, Length, Return, # Rows of Rings & Inside or Outside Mount

Kit includes:

  • 1 – Head Rail is 3/4” pine covered in lining
  • 1 – DCRF Battery Motor
  • 1 – Roller (Mounted)
  • 1 – Motor Adapter
  • 2 – Brackets
  • 1 – Crown & Drive Set 1.5”
  • 2 – 1/2” Mounting Angle Irons with Screws tube

Optional Accessories:

  • Recharger for DC Battery
  • White 15-Channel Remote

Comments on Shade Sizing from Steve Landis

  • Calculating maximum sizes for cordless shades is not an exact science. This chart is our best estimate for a normal drapery weight fabric and a standard lining. If measurements are outside our Safe Zone please contact us at MYL.
  • COM Fabric Shades – [email protected]
  • Operating System Kits – [email protected]
  • Larger shades can be made, but you run the risk of the spring not being able to handle the weight or length.
  • The minimum width of 27” is not negotiable due to the size of the spring.
  • Caution: Blackout lining, interlining, and upholstery weight fabrics will reduce the effectiveness of the spring.

Comments on Shade Sizing from Steve Landis

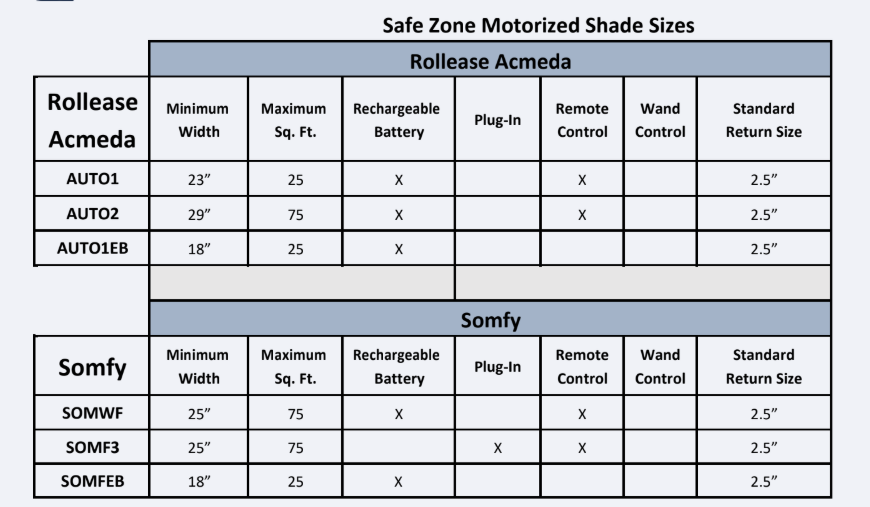

  • Calculating maximum sizes for motorized shades is not an exact science. This chart is our best estimate for a normal drapery weight fabric and a standard lining. If measurements are outside our Safe Zone, please contact us at MYL – [email protected].
  • Larger shades can be made, but you run the risk of the motor not being able to handle the weight or length.
  • Caution: Blackout lining, interlining, and upholstery weight fabrics may reduce the effectiveness of the motor.
